Siglent · Siglent Technologies SDM3065X 6 ½ Digit Digital Multimeter, DMM
View on AmazonPrice and availability are shown on Amazon and can change at any time.
Verdict
The Siglent SDM3065X is a 6.5 digit bench multimeter aimed at laboratory, education and engineering benches. The listing states real 6.5 digit resolution at 2,200,000 counts on a 4.3 inch 480 by 272 TFT display, and supplies EasyDMM sensor measurement control software. Its distinguishing feature is not the digit count, which it shares with several competitors, but the intent to use it as a controllable measurement instrument rather than a display.
Documented Specifications
| Item | Manufacturer listing |
|---|---|
| Resolution | Real 6.5 digits, 2,200,000 counts |
| Display | 4.3 inch TFT LCD, 480 by 272 |
| Software | EasyDMM sensor measurement control software supplied |
| Accuracy | Not stated in the listing bullets |
| Variants | An SC version with scanner card capability is listed separately |
Software Is What Separates Bench Meters
Handheld meters are used by a person reading a display. Bench meters are frequently used by a system: a script sets the function, triggers a reading, stores it, and repeats. That difference is why a bench meter’s software and interfaces matter as much as its front panel, and why an instrument supplied with usable control software is worth more than one where you have to write everything yourself.
Sensor measurement is the specific case the Siglent listing calls out. A thermocouple, an RTD or a transducer produces a small electrical signal that has to be converted into a physical unit. Doing that conversion in the instrument rather than in a spreadsheet afterwards turns a voltmeter into a temperature or pressure instrument, and makes long unattended recordings far more useful.
Why the Scanner Variant Exists
One precision meter is expensive; ten are unthinkable. A scanner card lets a single meter step through a number of channels in sequence, measuring each in turn. For monitoring the temperature at several points on a heat sink, the voltages across a string of cells, or a set of sensors on a test rig, that turns one instrument into a small data acquisition system. If you expect to measure more than one point, look at the SC variant before buying the base model.
Digits Without Accuracy Are Only Half the Story
The listing quotes resolution and does not quote accuracy in its bullets. That is worth flagging plainly, because the two are routinely confused. Resolution determines the smallest change the display can show. Accuracy determines how far the displayed value may be from the true one. A meter with seven digits and a one percent accuracy specification would display nonsense very precisely.
In practice a 6.5 digit bench meter from an established manufacturer will have a specification appropriate to its class, and the datasheet will state it per function and per range, usually with a term proportional to reading and a term proportional to range. Read it there, and note the calibration interval it assumes.
Where This Kind of Meter Earns Its Place
- Education and laboratory: resolution to demonstrate effects a handheld cannot show.
- Engineering benches: component characterisation, supply stability, drift over temperature.
- Production and incoming inspection: repeatable measurements against a documented limit.
- Long recordings: a mains powered instrument does not run out of battery during a 48 hour test.
Strengths
- Real 6.5 digit resolution at 2,200,000 counts.
- Sensor measurement software supplied rather than sold separately.
- Clear TFT display sized for bench reading.
- Scanner variant available for multi-channel work.
Limitations
- No accuracy figure in the listing bullets.
- Mains powered, bench only.
- Scanner capability requires the different variant, not an accessory decision made later.
- Overkill for field electrical work.
How It Compares
The UNI-T UT8806E publishes an accuracy figure and adds a touchscreen with histogram and trend views. For portable precision with logging, the Fluke 289 is the handheld answer. Our ranking is in the multimeter roundup.
How We Research
All figures come from the manufacturer listing. We did not run laboratory tests and publish no measurements of our own. Where the listing states no accuracy figure, this review says so.
Recommended Tools

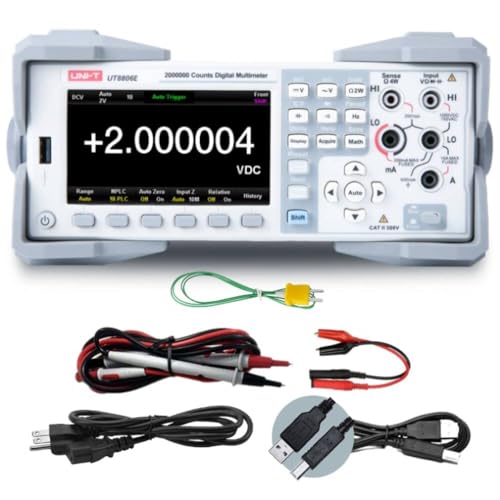

UNI-T UT8806E 6.5 Digit Performance-Series Benchtop Digital Multimeter 1,999,999 Counts
View on Amazon
Siglent Technologies SDM3065X-SC 6½ Digit Digital Multimeter, DMM,Scanner Card SC1016,
View on AmazonProducts shown because their documented specifications fit this guide. Price and availability are on Amazon and can change.
Frequently Asked Questions
How many counts does it display?
The listing states real 6.5 digit reading resolution at 2,200,000 counts, which is slightly above the 1,999,999 that 6.5 digits usually implies.
What is EasyDMM?
The listing describes it as easy, convenient and flexible sensor measurement control software supplied with the meter. It lets the instrument be configured to read sensors and present the results, rather than only displaying raw electrical values.
Is there a version with a scanner card?
Siglent lists an SC variant that adds scanner capability, which allows multiple channels to be measured in sequence through one meter. That matters for multi-point temperature or voltage monitoring.
Does the listing state accuracy?
The bullets quoted here do not publish an accuracy figure. Check the datasheet, because accuracy rather than digit count is what determines whether a reading can be trusted at that resolution.
